To load test a battery without a load tester, you can use a multimeter to measure the voltage and assess the battery’s health. Start by setting the multimeter to the DC voltage setting and connecting the positive (red) probe to the positive terminal of the battery and the negative (black) probe to the negative terminal.
Take a reading of the voltage and compare it to the manufacturer’s specifications to determine the battery’s charge level. A fully charged battery should read around 12. Next, you can perform a voltage drop test by measuring the voltage while the battery is under load, such as starting the engine or turning on the headlights.
If the voltage drops significantly, it may indicate a weak or failing battery. Additionally, you can conduct a specific gravity test on lead-acid batteries using a hydrometer to measure the electrolyte’s density, which can provide insight into the battery’s condition.
By utilizing these methods, you can effectively load test a battery without the need for a specialized load tester.
A multimeter can be used to test battery voltage by setting the device to the DC voltage setting, typically denoted by a V with a straight line above it. Before testing, ensure the multimeter is properly calibrated and the battery is disconnected from any circuit.
Next, connect the red probe to the positive terminal of the battery and the black probe to the negative terminal. The multimeter will display the voltage reading of the battery, which should ideally match the rated voltage of the battery. If the reading is significantly lower than the rated voltage, it may indicate that the battery is depleted and needs to be recharged or replaced.
Additionally, testing the battery voltage can help diagnose any issues with the battery or the circuit it is connected to.
By using a multimeter to test battery voltage, you can ensure the proper functioning of your batteries and devices that rely on them, ultimately helping to prolong their lifespan and prevent any potential malfunctions.
Performing a voltage drop test involves several key steps to accurately diagnose electrical issues in a circuit. The first step is to set the multimeter to the voltage setting and connect the black lead to the negative battery terminal and the red lead to the positive terminal.
Next, start the vehicle and let it idle to ensure a stable voltage reading. Then, measure the voltage drop across each connection point in the circuit, including the battery terminals, fuses, switches, and connectors. Compare the voltage drop readings to the manufacturer’s specifications to determine if there are any excessive drops that could indicate a problem.
If a high voltage drop is detected, the next step is to identify the specific component or connection point causing the issue. This may involve inspecting for loose or corroded connections, damaged wires, or faulty components.
Once the faulty component is identified, it can be repaired or replaced to restore proper electrical function. Overall, performing a voltage drop test is a crucial diagnostic tool in troubleshooting electrical problems and ensuring the efficient operation of a vehicle’s electrical system.

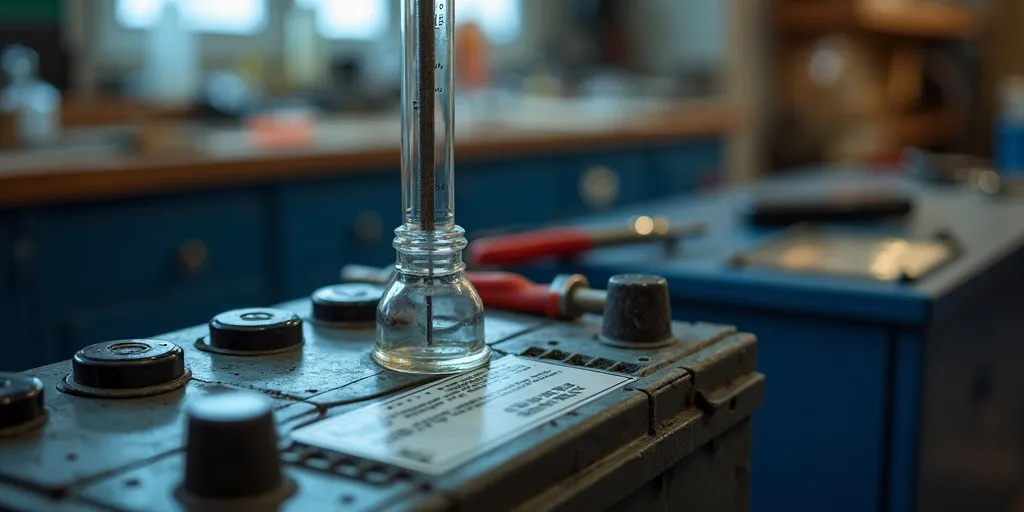

A specific gravity test on lead-acid batteries is conducted by using a hydrometer to measure the density of the electrolyte solution inside the battery cells. To begin the test, the battery must be fully charged and allowed to rest for a few hours to ensure the electrolyte has settled.
Next, the hydrometer is inserted into each cell, and a sample of the electrolyte is drawn into the hydrometer. The hydrometer is then read to determine the specific gravity of the electrolyte, which indicates the state of charge of the battery. A specific gravity reading of around 1.285 is considered fully charged, while a reading below 1.
225 indicates a discharged battery. It is important to conduct this test regularly to monitor the health and performance of the battery, as changes in specific gravity can indicate issues such as sulfation or electrolyte imbalance.
By performing specific gravity tests on lead-acid batteries, users can ensure their batteries are operating efficiently and prolong their lifespan.
When it comes to load testing a battery without a load tester, there are several alternative methods that can be used to assess the battery’s performance. One method is to use a multimeter to measure the voltage of the battery.
By connecting the multimeter to the positive and negative terminals of the battery, you can determine if the voltage is within the acceptable range for a fully charged battery. Another method is to use a battery analyzer, which can provide more detailed information about the battery’s health and performance.
Additionally, you can perform a visual inspection of the battery to check for any signs of damage or corrosion that may indicate a problem. Another option is to use a battery charger to test the battery’s ability to hold a charge. By charging the battery and then monitoring how long it takes to discharge, you can get an idea of the battery’s overall capacity.
Overall, while a load tester is the most accurate method for load testing a battery, these alternative methods can still provide valuable information about the battery’s condition.
